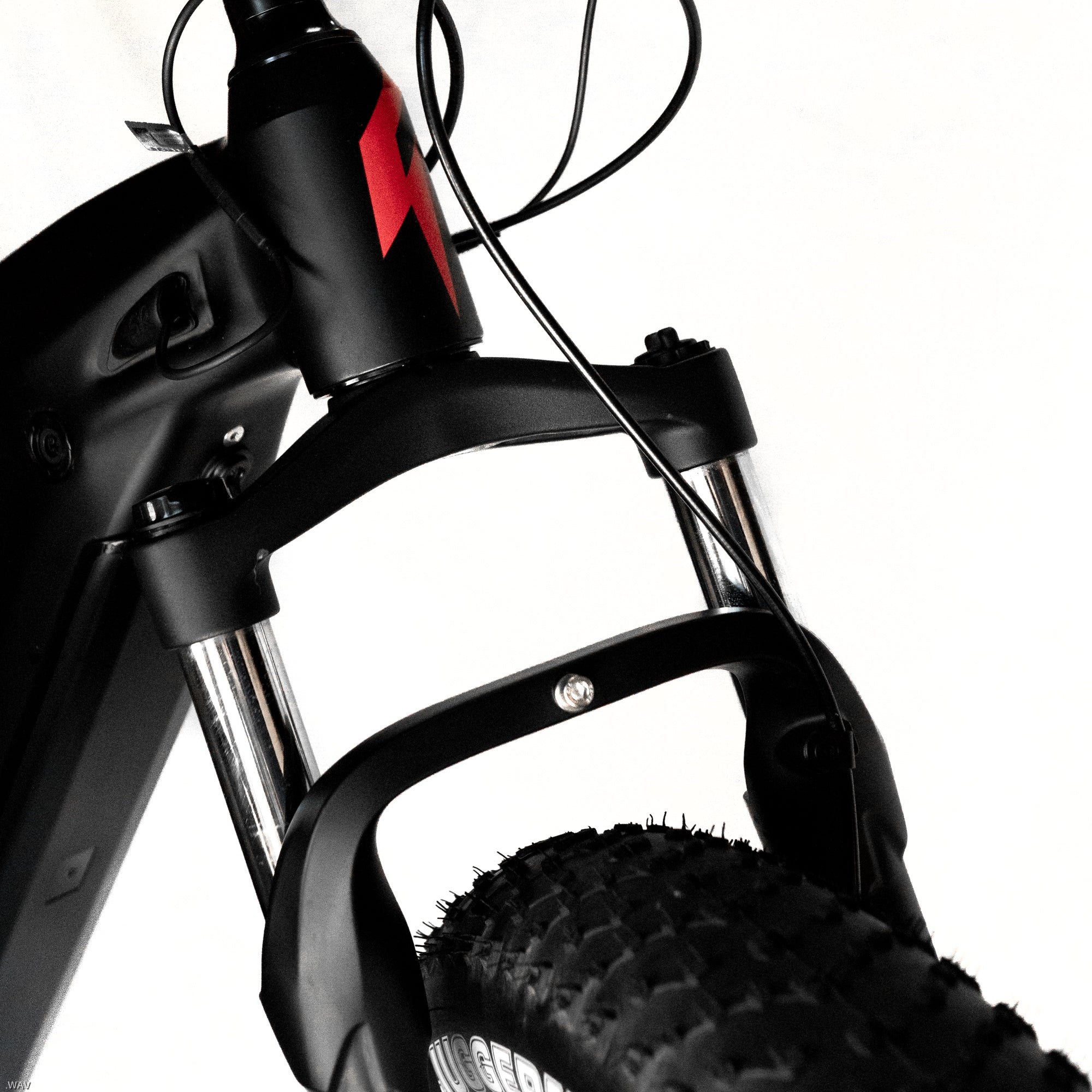

The RST Tapered Steerer is a suspension fork that was developed to fill the need for performance fat tire forks. This fork combines attractive, modern design with superior functionality & high stiffness with 95 mm Travel.
In Frame Lithium Battery
We've upgraded our batteries from 36V to 48V giving you even more range and power! We sourced the highest capacity cells in the world, the same ones used in the Tesla Model S for this. Charging time is 3 hours for the 10.4AH battery, and 4.5 hours for the 13.6AH battery.
Shimano Acera 8 Speed Drivetrain
This 8 speed drivetrain lets the hub motor shine and apply it’s torque over 8 different gear ratios to maximize acceleration, hill climbing and top speed.
Bafang 48V Hub Motor
This rear-drive motor, which is compatible with the disc brake, has a rated power of 750W, a reduction ratio of 1:5 and a maximum torque of 80 N.m, providing ideal power for our bike.
Fat Boy Tires
With a width of 4 inches, the tires will get you to where you need to go, regardless of the terrain. No longer are you limited by snow or sand. Take comfort knowing this bike can handle anything you throw at it.
Like a cockpit for your bike, see how fast you're going, how far you've ridden, average speed and battery life. Plug in a USB cable into the USB port, turn the LCD screen on and you can charge your phone on the go.
Thumb Throttle (optional)
Don’t want to pedal? Responsive throttle allows the bike to be powered without pedaling.
|ECONOMY MODE (Power Level 1):||Up To 80 Miles|
|SPEED MODE (Power Level 5):||Up To 35 Miles|
|* Experienced rider in optimal conditions, your mileage may vary.|
Up to 28 mph* (45 kph) (28 mph with Throttle Only)
*Where local laws permit
|TYPE:||Bafang M600 (Mid-Mounted Geared Motor)|
|NOMINAL/PEAK OUTPUT:||500 watts / 850 watts|
|TORQUE:||120 Newton meters|
|TYPE:||LG / Panasonic (Lithium Ion, 48 Volts) Removable w/key lock. 13.6 ah or 17.5 ah|
|WATT HOURS:||652.8 Wh or 840 Wh|
|CHARGE TIME:||4-5 Hours|
|BATTERY WEIGHT||10.5 lbs|
|MODULES:||FLX Branded Bafang DPC18 Color Display.|
|READOUTS:||Current Speed, Max Speed, Average Speed, Odometer, Tripometer, Range, Battery in Percentage, Assist Level (0-5)|
|DISPLAY ACCESSORIES:||Independent Button Pad on Left, USB Charging Port|
|DRIVE MODE:||Pedal Torque Assist, Thumb Throttle (optional)|
|WEIGHT (No Battery)||66.6 lbs|
|RATED WEIGHT CAPACITY||275 lbs (124.74 kg)|
|FRAME MATERIAL:||6061 Aluminum Alloy|
|FRAME COLORS:||Black, Blue, Red, Green|
|FRAME FORK DETAILS:||SR Suntour NEX-E25 Spring Suspension with 63 mm travel, 1-1/8" x 1-1/2" Tapered Steerer, Hydraulic Lockout, Quick Release 10 x 135 mm, Coil spring adjust for preload|
|FRAME REAR DETAILS:||12 x 190 mm Quick Release Thru-Axle|
|ATTACHMENT POINTS:||Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses|
|GEARING DETAILS:||8 Speed 1x8 Shimano Deore Derailleur|
|SHIFTER DETAILS:||Shimano Deore M600 Triggers|
|CRANKS:||Prowheel, Aluminum Alloy, 170 mm Length|
|CHAINRING:||Bafang, 44T with Narrow Wide Teeth|
|HEADSET:||Threadless, Internal Cups, 1-1/8" x 1-1/2" Tapered, Sealed Bearings|
|STEM:||6061 Aluminum Alloy, 110 mm Length, 25.4 mm Clamp Diameter|
|HANDLEBAR:||Aluminum Alloy, 600 mm Length, High 30mm*45° Rise|
|BRAKE DETAILS:||DIA-Comph with 203 mm Rotors|
|SADDLE:||FLX Branded Velo, Comfort|
|SEAT POST:||Aluminum Alloy|
|SEAT POST LENGTH:||285 mm|
|SEAT POST DIAMETER:||31.6 mm|
|TIRES:||Innora 26 in x 4 in|
|WHEEL SIZES:||26 in|
|TUBE DETAILS:||Schrader Valve|
